How to Prevent Fatigue Failure in Sprocket Design Using Finite Element Analysis (FEA) ?

Understanding the Fatigue Failure in Sprockets

Fatigue failure occurs when the component is subjected to cyclic loading, which causes subsurface crack initiation at a microscopic level. The crack propagates gradually over a period of time, leading to catastrophic failure. For sprockets, fatigue failure happens when the teeth are subjected to different stress levels as they mesh with the chain. The stresses on the sprocket teeth frequently increase due to impact loading, lubrication, or material flaws. Thus, the durability and reliability of the entire system depend on designing a sprocket that can withstand numerous loading cycles without experiencing fatigue failure. To address this, engineers must first determine how and where fatigue is most likely to occur, which is where Finite Element Analysis (FEA) comes into play.

FEA Unleashed in Sprocket Design

Finite Element Analysis (FEA) is a technique for breaking down a complicated structure into smaller sections (elements) and simulating how they react under various conditions, revealing stresses, strains, and deformations in the structure.

In sprocket design, Finite Element Analysis (FEA) can be particularly powerful because it allows for:

1. Localized Stress Analysis: Understanding how stress develops at specific locations, such as the tooth root or chain engagement, can identify areas prone to fatigue.
2. Material Optimization: Finite Element Analysis (FEA) enables engineers to test several materials, hardening, and manufacturing processes to find the best fatigue-resistant alternative before finalizing the design.
3. Dynamic Loading Simulation: FEA simulates dynamic situations such as shock loading, chain slippage, and variable rotational speeds to assess sprocket performance in custom operating conditions.

But here’s where things get interesting: engineers can now use FEA to determine the fatigue failure and make custom design changes to reduce it. How exactly?

Approach to Preventing Fatigue with FEA

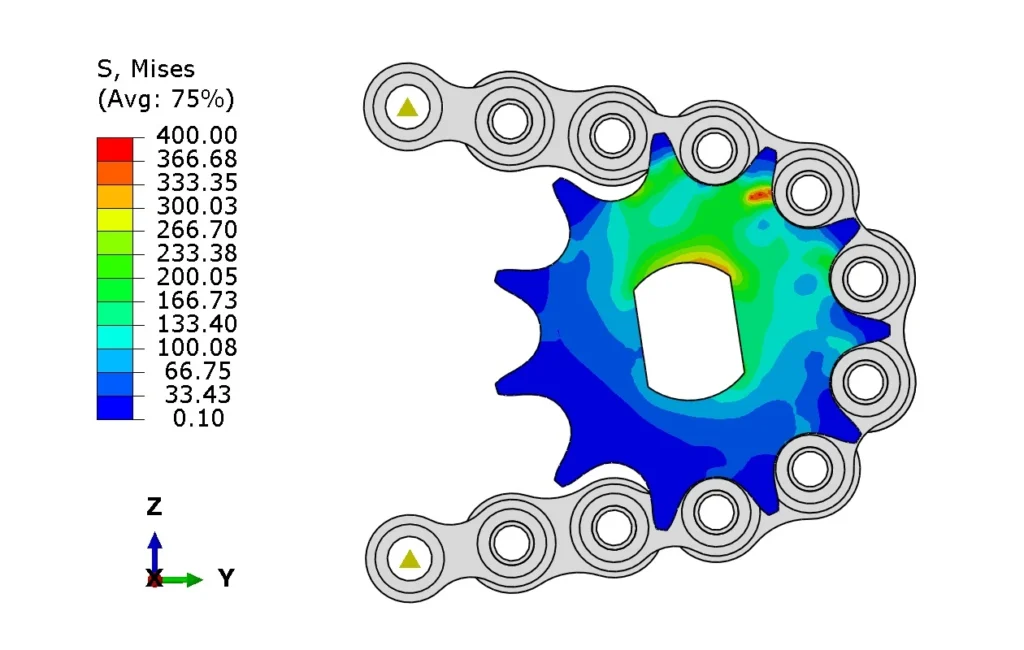

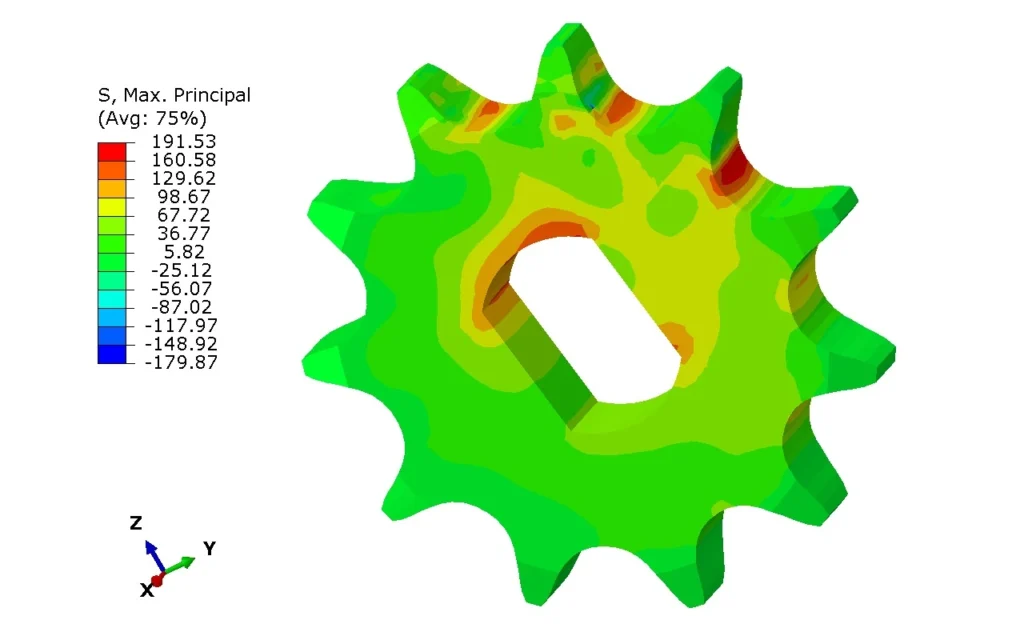

Finite Element Analysis (FEA) is used to determine the stresses and strains at the critical region in the sprocket. Further, by integrating the fatigue model, the service life of the sprocket can be estimated, and optimization possibilities identified to enhance the fatigue life cycle. A user-friendly software such as SolidWorks Simulation is helpful for setting up a problem and obtaining results. SolidWorks Simulation involves creating the model, assigning materials, applying loads and constraints, then meshing and running the simulation to determine the stress and strain at the critical location. Further fatigue models are used to estimate the fatigue life of sprockets.

1. Incorporating Fatigue Life Prediction Models

The FEA tools can integrate fatigue life estimation models such as stress-life and strain-life approaches with mean stress correction directly into the analysis to plot the S-N curves for different loading conditions. Based on the predetermined stress and strain data at the critical region of the sprocket and by incorporating the fatigue life model, the number of cycles a sprocket can withstand before failing can be determined. The crack initiation life can also be estimated. Through this data, the sprocket design optimization is done to ensure a longer lifespan.

2. Sprocket Tooth Profile Design Optimization

The sprocket tooth profile can be modified for custom applications for better performance. Sprocket tooth geometry is one of the critical areas where we can focus to enhance the fatigue life. By strengthening the tooth profile at the localized stress concentration areas, crack initiation can be delayed. For example, increasing the tooth thickness at the chain contact region and ensuring a smooth, curved transition will decrease stress and extend the fatigue life of the sprocket. FEA allows for quick iterations of different tooth profiles to determine the best design for higher durability.

3. Material Selection

Selecting materials for sprockets plays a major role in fatigue life. Some materials may be strong but brittle, while others could have excellent fatigue resistance but poor wear properties. Various materials can be virtually analyzed under the operating load condition using Finite Element Analysis (FEA) to determine the fatigue life of the sprocket. Based on the simulation outcomes, the optimum material can be selected without the need for numerous experimental trials, which is also cost-effective.

4. Dynamic Load Simulation and Optimized Sprocket Load Distribution

Sprockets rarely operate under static, uniform loading conditions. In actual conditions, sprockets work under shock loading, varying speeds, and rapidly changing loading directions. Simulations can be carried out under dynamic loading conditions by analyzing sprocket tooth interaction with chain links over a period of time. The sprocket can be simulated to account for the effects of shock loading and transient forces, ensuring it remains within its fatigue limit throughout its lifecycle. If not, the design needs optimization to prevent fatigue failure in sprocket design using FEA.
